Hydra Aortic Valve
| Outflow | Low radial strength provides conformability to the shape of the aorta |
| Mid Frame | High hoop strength ensures circular configuration of the bioprosthetic valve |
| Inflow | High radial strength provides fixation to the native aortic annuals |

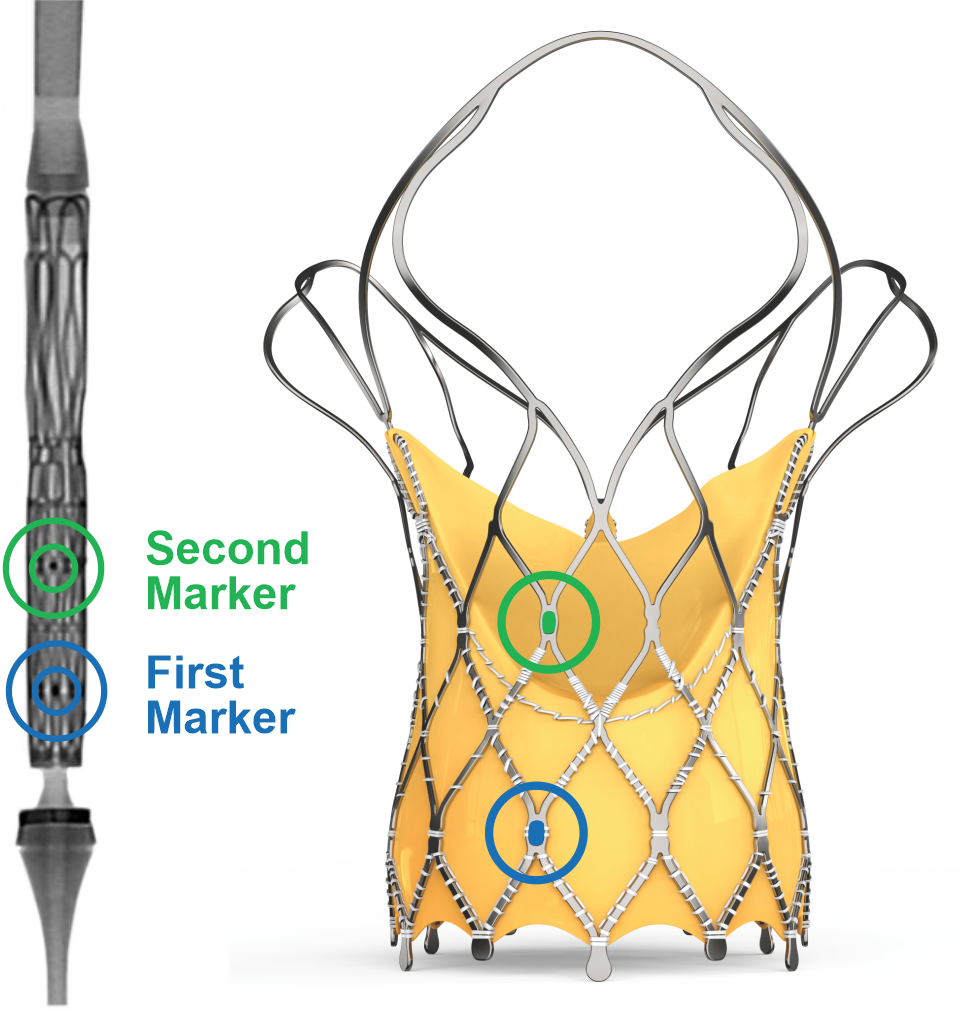

Marker location and significance
- Self-expanding TAVI device to have 2 rows of marker
- First Markers are located at Node 1
- Second Markers are located at Node 3
- First marker helps
- In precise implantation of the valve at the targeted implantation zone
- To ascertain the depth of implant
- Second marker indicates
- When the THV leaflets are going to get deployed
Case Example
Key Features
Bovine Pericardium
- Made from single bovine pericardium
- Bioprosthetic valve leaflets are supra-annular in position provides superior hemodynamics by providing larger effective orifice area and lower pressure gradient
- Supra-annular valve position helps to maintain circular shape of the bioprosthetic valve even if the native annuals shape is elliptical
- Anti-calcification treatment
Hydra AVDC(Aortic Valve Delivery Catheter)
Capsule
- Radiopaque soft atraumatic tip
- Gold marker band on the capsule helps in determining the location of sheath while release/recapture
Recapturable up to 80% deployment
Hydra THV* can be Re-Captured up to 80% deployment
* Transcatheter Heart Valve
Up to 80% deployment: The valve can be partially or fully recaptured up to three times prior to the point of no recapture. Third attempt must be a complete recapture and retrieval from patient.
Up to 80% deployment: The valve can be partially or fully recaptured up to three times prior to the point of no recapture. Third attempt must be a complete recapture and retrieval from patient.
Clinical experience
Excellent Hemodynamics
Genesis study (n=40)#
0% moderate-to-severe paravalvular leakage
Genesis study (n=40)#
0% moderate-to-severe paravalvular leakage
#11 Centres across India; Mean age: 74.5 years; Mean STS score: 5.05%. Data on file
Ordering Information
| Reference Number |
Size | Delivery Catheter System |
Valve Loading system |
|---|---|---|---|
| HYDRA22 | 22 mm | HYDRA18F | HYDRA18VLS |
| HYDRA26 | 26 mm | HYDRA18F | HYDRA18VLS |
| HYDRA30 | 30 mm | HYDRA18F | HYDRA18VLS |
Caution: This product is intended for use by or under the direction of a physician. Prior to use, refer to the "Instructions for use" supplied with these devices for indications, contraindications, side effects, suggested procedure warnings and precautions. As part of our continuous product development policy we reserve the right to change product specifications without prior notification. Check the regulatory status of the device before distribution in areas where CE marking is not the regulation in force. Illustration are artist's representations only and should not be considered as engineering drawings or protographs. Photos on file at Sahajanand Medical Technologies. Ltd. Disclaimer: © 2020 Sahajanand Medical Technologies Ltd. - All rights reserved. Specifications are subject to modification, revision and improvement.
